S1-1K-20KVA

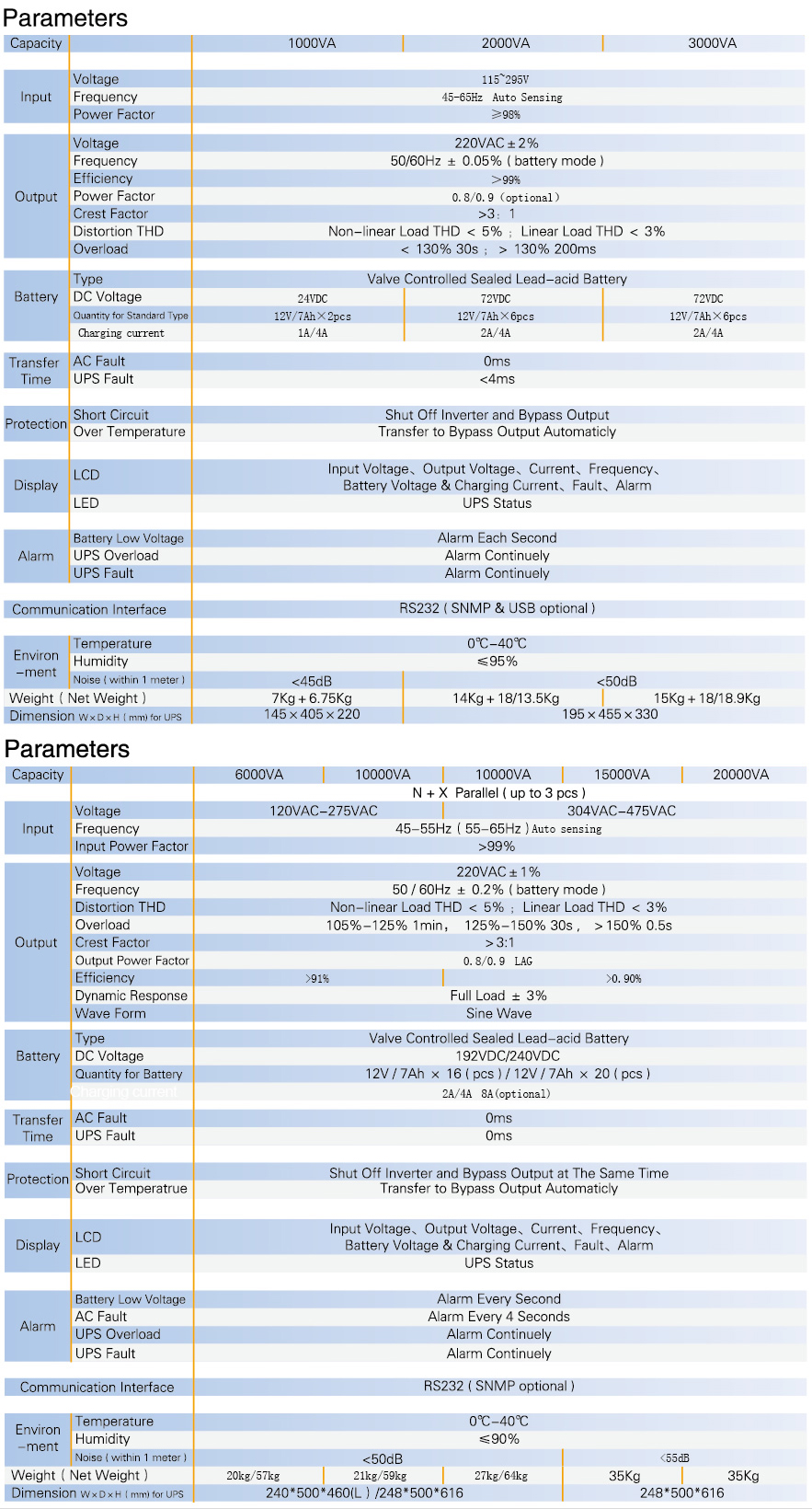

PRODUCT PARAMETERS

Product Introduction

S1-1K-20KVA series is based on double conversion on-line intelligent UPS, it adopts advanced DSP digital control technology, has functions of higher output performance indicators and a number of innovative design features, with feature of small volume, light weight, low calorific value and etc, collect AC voltage regulator, back-up power and peak surge absorption in together, meet the harsh power environment protection.

Application

   • Enterprise, Branch of major enterprise, bank

• Network, Communication system, AC power supply in automatic control system

• AC power supply of precise instrument

Key Feature

Efficiencyand Reliable

• Super wide input voltage, reduce the number of battery discharge effectively, extend the battery life

• On-line double conversion technology, provide stable and reliable power supply to customers

• Adopt 5KA lightning protection design in input port, reduce the lightning failure rate greatly

• Alarm before 巳usbar capacitance, fans, battery and key components failure in advance

• Advanced constant voltage charging and constant current charging, two stages and other charging ways, improve the efficiency of battery effectively

Intelligent Management

• SNMP/MODBUS/DRY CONTACT/USB and other communication mode are optional

• Support for delay power off, shut down the computer application system and operate system with safety timely

• With function of self-diagnosis when power on, find and prevent fault in time

• Can alarm from Mobile APP, WeChat remote management, SMS and others.

Flexible and easy to use

• LCD display, friendly human-computer interface, real-time monitoring, convenient to operate

• Compatible with rack mount or tower installation, adapt to different installation environment
